美标锻钢承插焊闸阀
别名：Z61Y美标对焊锻钢闸阀
美标锻钢承插焊闸阀
特点及优点
美标锻钢承插焊闸阀
设计与制造标准
●设计与制造：ANSIB16.34 API600 API602
●法兰尺寸：ANSIB16.5
●压力温度：ANSIB1.20.1
●结构长度：ANSIB16.10
●对焊连接尺寸：ANSIB16.11
●检验与试验：API598
性能材质表
| 序号 NO. |
名 称 | 美标碳钢 CS to ASTM |
美标合金钢 AS to ASTM |
美标不锈钢钢 SS to ASTM |
||
| Part Name | Type A 105 | Type F22 | Type F304(L) | Type F316(L) | ||
| 1 | 阀体 | Body | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
| 2 | 阀座 | Seat Ring | A276 420 | A276 304 | A276 F304(L) | A276 F316(L) |
| 3 | 闸板 | Wedge | A276 430&410 | A182 F304 | A182 F304(L) | A182 F316(L) |
| 4 | 阀杆 | Stem | A182 F6 | A182 F304 | A182 F304(L) | A182 F316(L) |
| 5 | 垫片 | Gasket | Corrugated SS+graphite | SS+PTFE | ||
| 6 | 阀盖 | Bonnet | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
| 7 | 螺栓 | Bonnet Bolt | A193 B7 | A193 B16 | A193 B8 | A193 B8M |
| 8 | 销 | Pin | A276 420 | A276 F304 | ||
| 9 | 填料压套 | Gland | A276 410 | A182 F304(L) | A182 F316(L) | |
| 10 | 活节螺丝 | Gland Eyebolt | A193 B7 | A193 B16 | A193 B8 | A193 B8M |
| 11 | 填料压盖 | Gland Flange | A105 | A182 F11 | A182 F304(L) | A182 F316(L) |
| 12 | 螺母 | Gland Nut | A194 2H | A 194 4 | A194 8 | A194 8M |
| 13 | 阀杆螺母 | Stem Nut | A276 420/Cu-Alloy(铜合金) | |||
| 14 | 手轮锁紧螺母 | H.W.Lock Nut | A 194 2H | A194 4 | A 194 8 | A194 8M |
| 15 | 铭牌 | Nameplate | SS | |||
| 16 | 手轮 | Handwheel | A197 | |||
| 17 | 衬垫 | Bearing Gasket | A473 431 | |||
| 18 | 填料 | Stem Packing | Flexible Graphite | PTFE | ||
| 适用介质 Suitable Medium | (水、油、气等)W.O.G.etc | (酸类)HNO3,CH3OOH etc | ||||
| 适用温度 Suitable Temperature | -29℃～425℃ | -29℃～550℃ | -29℃～180℃ | |||

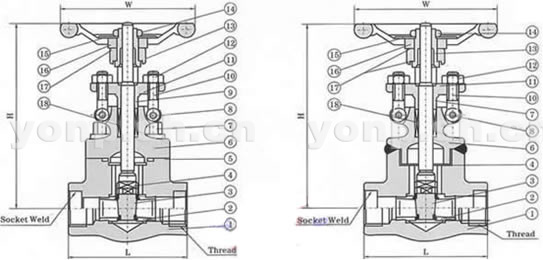

安装尺寸及重量
| ANSI 150Lb | ||||||||
| NPS | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 |
| L | - | - | 108 | 117 | 127 | 140 | 165 | 178 |
| L1 | 79 | 79 | 79 | 92 | 111 | 120 | 120 | 140 |
| H | 169 | 169 | 169 | 193 | 230 | 246 | 283 | 330 |
| D0 | 100 | 100 | 100 | 100 | 125 | 160 | 160 | 180 |
| Wt | - | - | 5 | 6.1 | 8.4 | 14.3 | 15.4 | 22.7 |
| Wt1 | 2.2 | 2.4 | 2.4 | 2.4 | 4.8 | 6.1 | 7.2 | 11.2 |
| ANSI 300Lb | ||||||||
| NPS | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 |
| L | - | - | 140 | 152 | 165 | 178 | 190 | 216 |
| L1 | 79 | 79 | 79 | 92 | 111 | 120 | 120 | 140 |
| H | 169 | 169 | 169 | 193 | 230 | 246 | 283 | 330 |
| D0 | 100 | 100 | 100 | 100 | 125 | 160 | 160 | 180 |
| Wt | - | - | 5.2 | 6.3 | 8.6 | 14.5 | 15.6 | 22.8 |
| Wt1 | 2.2 | 2.4 | 2.4 | 2.4 | 4.8 | 6.1 | 7.2 | 11.2 |
| ANSI 600Lb | ||||||||
| NPS | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 |
| L | - | - | 165 | 190 | 216 | 229 | 241 | 292 |
| L1 | 79 | 79 | 79 | 92 | 111 | 120 | 120 | 140 |
| H | 169 | 169 | 169 | 193 | 230 | 246 | 283 | 330 |
| D0 | 100 | 100 | 100 | 100 | 125 | 160 | 160 | 180 |
| Wt | - | - | 5.9 | 7.5 | 10.2 | 16.7 | 17.4 | 28.7 |
| Wt1 | 2.2 | 2.4 | 2.4 | 2.4 | 4.8 | 6.1 | 7.2 | 11.2 |
| ANSI 800Lb | ||||||||
| NPS | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 |
| L1 | 79 | 79 | 79 | 92 | 111 | 120 | 120 | 140 |
| H | 169 | 169 | 169 | 193 | 230 | 246 | 283 | 330 |
| D0 | 100 | 100 | 100 | 100 | 125 | 160 | 160 | 180 |
| Wt1 | 2.2 | 2.4 | 2.4 | 2.4 | 4.8 | 6. | ||
